Tea Tree Mushroom Cultivation Container Standard

1. Product Overview

Tea tree mushrooms are a warm-weather species well suited to filling the capacity gap left by other mushrooms in hot summer periods. This model uses a regular grid rack to stand substrate bags densely upright, with top-mounted micro-sprinklers and directional ventilation for an even, uniform fruiting surface.

 2. Key Advantages

• Grid-indexed racks that stand bags densely upright for a uniform fruiting surface

• Top-mounted micro-sprinklers that wet the bag mouths evenly for synchronised fruiting

• Unit optimised for the 20-28 degC high-temperature regime, giving stable summer operation

• Consistent stipe orientation that markedly speeds up harvesting and grading

三、技术参数 / 3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M9B

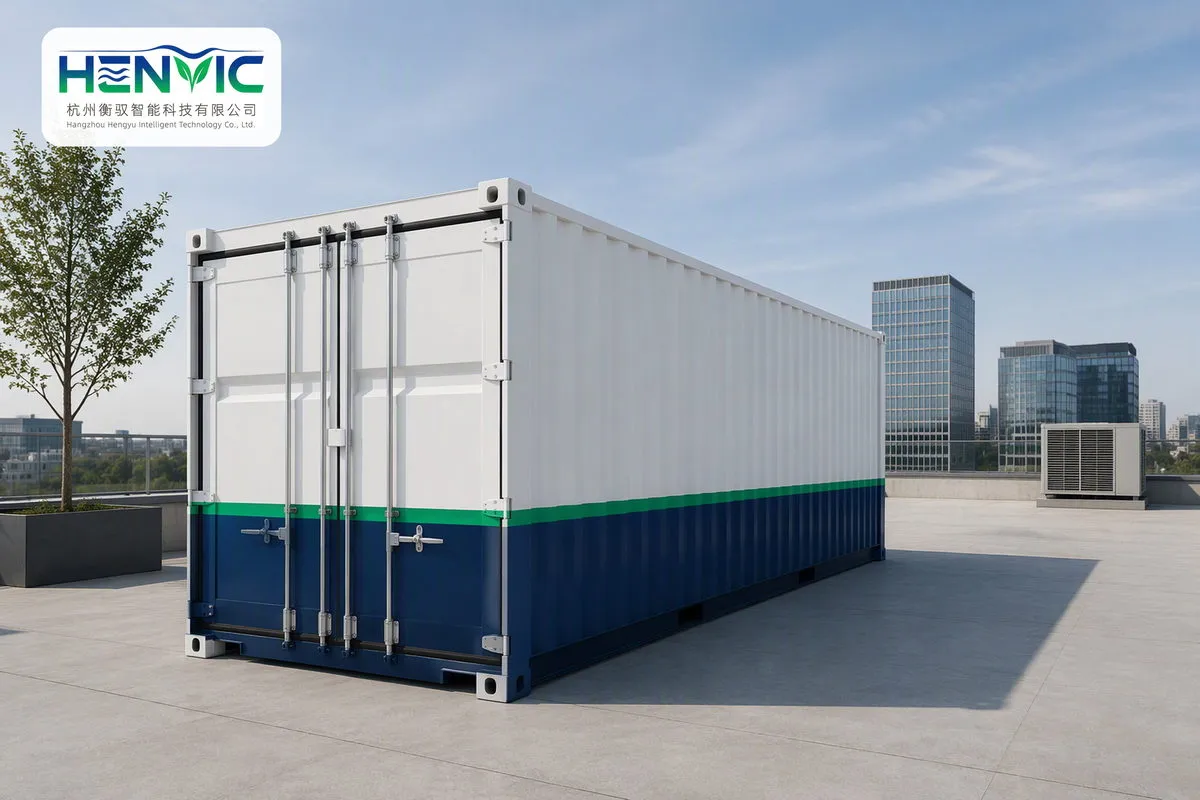

外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	45–60 m²  /  45-60 m2
层架配置 / Rack configuration	4 层不锈钢出菇架，层距可调  /  4-tier stainless steel growing racks with adjustable shelf pitch
温度控制范围 / Temperature range	20-28 ℃ (±0.5 ℃)  /  20-28 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-92% RH
CO₂ 浓度 / CO₂ concentration	700-1400 ppm
光照 / Lighting	0-500 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	30–45 天  /  30-45 days
装机功率 / Installed power	12–15 kW  /  12-15 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.35 W/(m²·K)  /  <= 0.35 W/(m2.K)
控制系统 / Control system	PLC + 触摸屏 + 远程监控，支持配方一键切换  /  PLC with touch panel and remote monitoring; one-touch recipe switching
主栽品种 / Primary species	茶树菇（Agrocybe cylindracea）  /  Tea Tree Mushroom (Agrocybe cylindracea)



4. System Configuration

Standard configuration: Grid-indexed racks, mid-to-high-temperature refrigeration unit, top-mounted micro-sprinkler humidification, directional air supply, dimmable LEDs, drainage with anti-ponding flooring, and an intelligent control cabinet.

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-tier stainless steel growing racks with adjustable shelf pitch; control: PLC with touch panel and remote monitoring; one-touch recipe switching.

 5. Suitable Species

Primary species: Tea Tree Mushroom (Agrocybe cylindracea). Cultivation method: bag culture with bags stood upright and fruiting from the top. A drying line can be laid out alongside this unit to shorten the interval between harvest and drying.

 6. Application Scenarios

Supporting bases for dried tea tree mushroom processing, mushroom production in southern regions, and cooperative-scale projects. This is the Standard configuration; The best balance of output and investment; the mainstream production configuration.

7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 72-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 4 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
