Large-Farm Mushroom Cultivation Container Smart Climate-Controlled Growing Module · 40-ft ISO Container Platform

1. Product Overview

The HENVIC Large-Farm Mushroom Cultivation Container is a turnkey, containerized growing room engineered for professional and industrial-scale mushroom production. Built on a standard 40-ft high-cube platform, each module delivers a fully insulated, climate-controlled cultivation chamber that is factory pre-commissioned and delivered plug-and-play to any site.

Designed around the physiology of cultivated mushrooms, the module precisely regulates temperature, humidity, CO₂ concentration, airflow and light across every growth stage — from mycelium run and primordia formation to fruiting and harvest. The multi-tier shelving system multiplies the usable growing area up to approximately 110 m² inside a single container, while the modular footprint lets large farms scale production by simply adding units, with no building construction required.

2. Product Gallery

3. Key Features

• Turnkey plug-and-play module — factory pre-commissioned and tested before shipment; minimal site preparation

• Precise, uniform growing climate — temperature, humidity, CO₂ and airflow independently regulated per growth phase

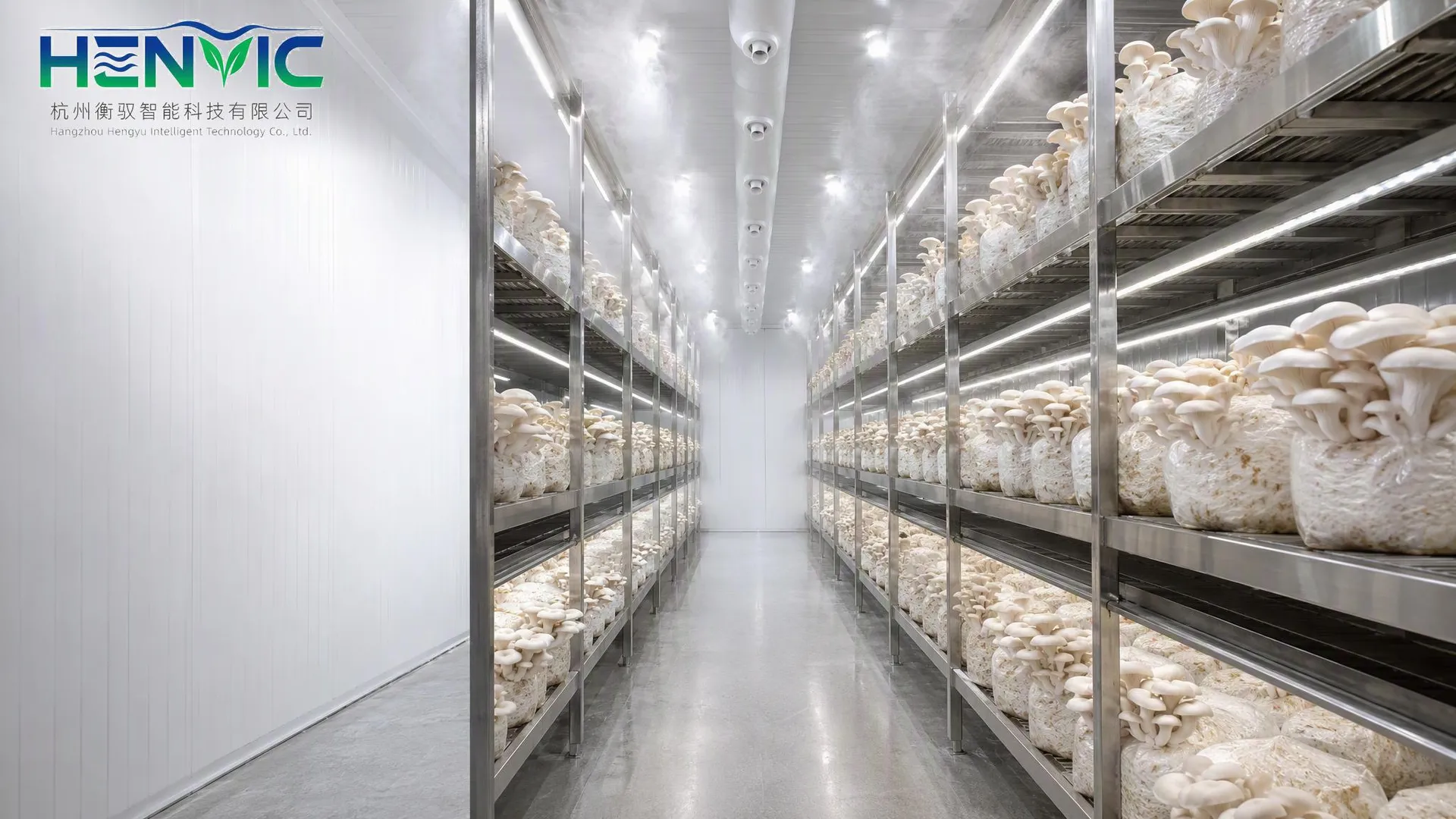

• High-density cultivation — up to ~110 m² effective growing area inside one 40-ft module with 5–6-tier food-grade stainless shelving

• Energy-efficient operation — inverter heat-pump system combined with 100 mm PU insulation lowers running costs

• Hygienic, food-grade interior — sealed panels and stainless steel surfaces for easy sanitation between production cycles

• IoT smart platform — real-time monitoring, remote set-point control, alarm push and long-term data logging

• Automatic species recipes — climate programs for mycelium run → primordia → fruiting → harvest stages

• Modular scalability — standard ISO footprint allows farms to expand unit by unit without new construction

• World-ready configuration — 50/60 Hz and 220/380 V power options; containerized transport to any destination

• Project engineering — layout, shelving, lighting spectra and species programs customized per farm

4. Technical Specifications

Parameter	Standard Configuration
Module type	40-ft (40HQ) insulated container module, ISO corner castings, single- or multi-module farm layouts
External dimensions (L×W×H)	12,192 × 2,438 × 2,896 mm
Growing floor area	Approx. 26–28 m² interior layout (customizable)
Effective cultivation area	Up to ~110 m² with 5–6-tier food-grade stainless-steel shelving (species-adapted)
Insulation	100 mm high-density PU sandwich panels; thermal conductivity ≤ 0.024 W/(m·K)
Temperature control	+4 °C to +30 °C; control accuracy ±0.5 °C (inverter heat-pump heating & cooling)
Humidity control	40–95 % RH; accuracy ±5 % RH (ultrasonic atomization humidifiers)
CO₂ management	Automatic fresh-air exchange, 300–2,000 ppm; optional CO₂ enrichment
Air distribution	EC circulation fans with multi-zone ceiling ducting; adjustable air speed
Air filtration	Primary filtration standard; HEPA available for high-biosafety programs
Lighting	Full-spectrum dimmable LED, 0–100 %; automatic photoperiod scheduling
Control system	PLC + 10.1" HMI touchscreen; IoT cloud remote monitoring via APP / web
Sensor suite	Temperature, humidity, CO₂, light intensity (optional sensors on request)
Power supply	380 V / 50 Hz three-phase standard; 220 V / 60 Hz available on request
Installed power	Approx. 6–12 kW per module, depending on configuration
Ambient operating range	−20 °C to +45 °C
Noise level	≤ 65 dB(A) at 1 m (climate unit)
Door & access	Insulated sealed access door with lock; optional inspection window
Delivery & commissioning	Factory pre-commissioned, plug-and-play on site; minimal civil works required

Note: parameters above reflect the standard configuration. Custom sizes, capacities and climate ranges are available through project engineering.

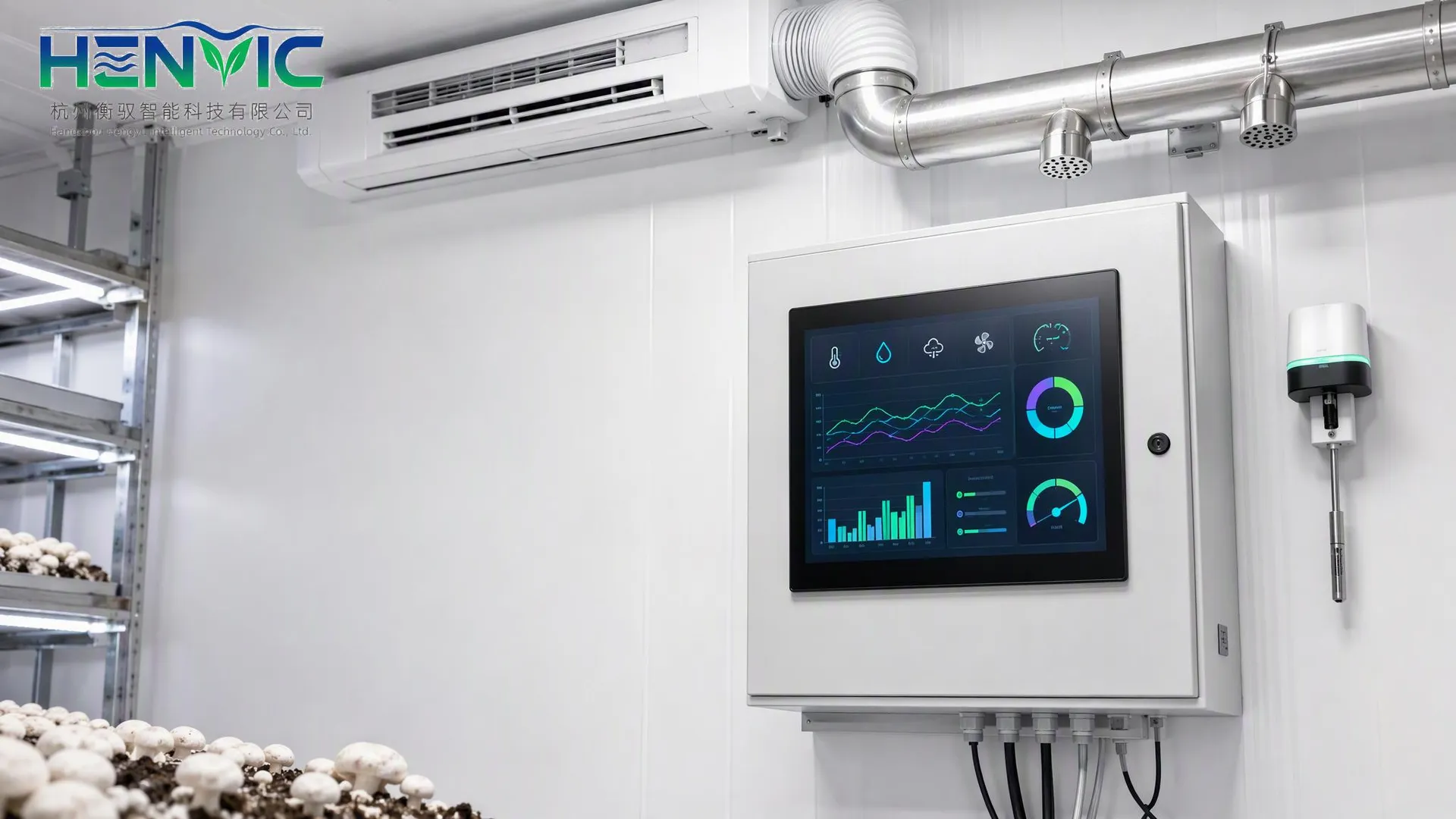

5. Smart Climate Control System

Every module is equipped with an integrated control system that turns the container into a precise, self-regulating growing environment:

• PLC controller with a 10.1-inch HMI touchscreen for local operation and multi-stage recipe programming

• Sensor suite monitoring temperature, humidity, CO₂ and light intensity inside the growing chamber

• Automatic control loops driving the inverter heat pump, ultrasonic humidifiers, fresh-air dampers, EC fans and LED photoperiod

• Cloud IoT platform — monitor in real time and adjust set-points remotely from a smartphone APP or web dashboard

• History and analytics — environmental records stored for more than 12 months to support yield optimization

• Multi-level alarms (APP / SMS / email) with sensor fault detection, fail-safe recovery and optional backup-power interface

6. Suitable Mushroom Species & Growth Programs

The module supports a wide range of commercially cultivated mushroom species. The table below lists typical fruiting parameters; precise climate recipes are configured during project engineering.

Species	Fruiting Temperature	Relative Humidity	Light Level
Oyster mushroom (Pleurotus ostreatus)	12–20 °C	85–95 %	300–800 lux
King oyster (Pleurotus eryngii)	10–16 °C	80–90 %	200–500 lux
Shiitake (Lentinula edodes)	14–22 °C	80–90 %	100–300 lux
Enoki (Flammulina velutipes)	6–10 °C	85–95 %	Low / dark during pinning
Lion's mane (Hericium erinaceus)	15–22 °C	85–95 %	200–500 lux
White beech / Bunapi (Hypsizygus marmoreus)	14–18 °C	85–95 %	300–600 lux

Additional species — including premium varieties such as morel, porcini and maitake — can be supported with species-specific climate programs on a project basis.

7. Farm-Scale Deployment & Applications

• Rapid expansion of existing mushroom farms without new building construction

• Greenfield industrial production of oyster, king oyster, shiitake, enoki and other mainstream species

• Crop diversification for vegetable growers, greenhouse operators and agricultural cooperatives

• Fresh-market production located close to consumption areas for shorter supply chains

• Production in remote or harsh climates (desert, plateau, cold regions) thanks to high-performance insulation

• R&D and pilot facilities for substrate trials, variety testing and production-method development

For large projects, HENVIC supports multi-module farm planning — including module layout, central service rooms, power and water supply design, and staged commissioning — so production capacity can grow with the market.

8. Service & Support

• Pre-sales: site survey, layout and configuration proposal, and production-capacity planning

• Customization: shelving configuration, lighting recipes, species programs, power options and container branding

• On-site commissioning and operator training, with English operation & maintenance manuals

• Standard 12-month warranty, long-term spare-parts supply and remote diagnostics via the IoT cloud

• Dedicated after-sales engineering support for the lifetime of the project

HENVIC — Intelligent Growing Solutions by Hangzhou Hengyu Intelligent Technology Co., Ltd.
